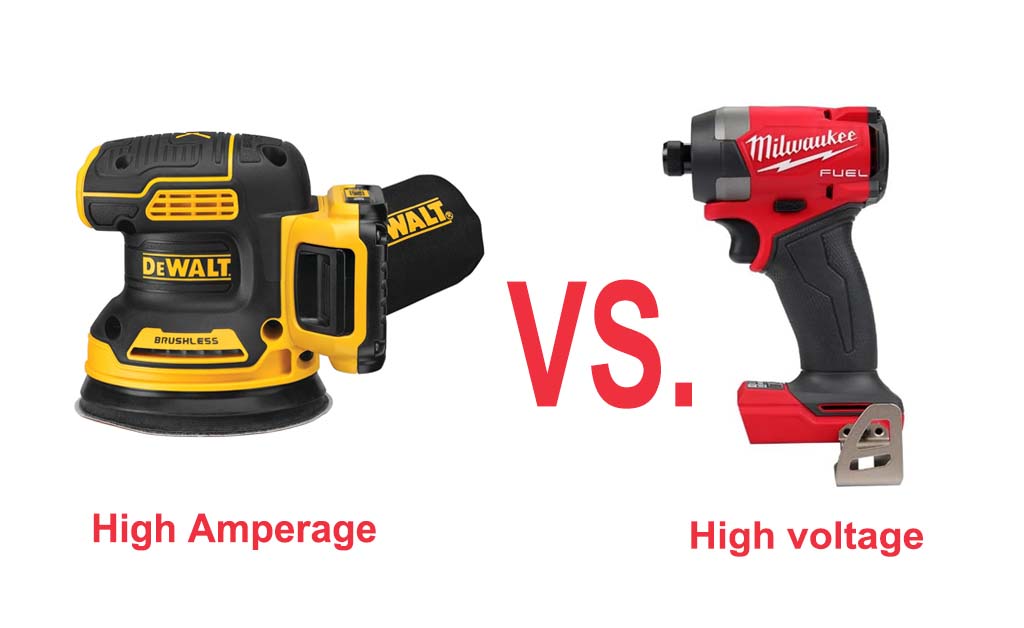

Amp Vs Volt Power Tools Explained for Smarter Buying Decisions

For many DIYers and even seasoned tradespeople, the specifications on power tools – particularly voltage (V) and amperage (A) – can feel like a confusing code. Does a higher voltage automatically mean a more powerful tool? Should you chase amps or volts when choosing your next drill or saw? Understanding the distinct roles of voltage and current (amperage) is crucial for selecting the right tool for the job. Let’s break down the science and practical implications.

Does Higher Voltage or Higher Amperage Mean a More Powerful Tool? (Choosing Between V or A?)

The short answer is neither tells the whole story alone. True power, measured in Watts (W), is the product of Voltage (V) and Current (A):

 Power (Watts) = Voltage (Volts) x Current (Amps).

• High Voltage Tools (e.g., 18V, 20V MAX, 36V, 60V/80V Platforms): Higher voltage (How to check battery voltage?) allows a tool to deliver more work potential per unit of current. Think of voltage like water pressure in a hose. Higher pressure (voltage) can push harder. This translates to:
• High Amperage (Current) Tools: Amperage represents the flow of electricity. Think of it like the volume of water flowing through the hose. Higher amperage means more electrons are flowing at that voltage.
  • Corded Tools: Amperage ratings (e.g., 10A, 15A) directly indicate power consumption and, generally, maximum sustained power output (Watts = V x A; North American voltage is ~120V). A 15A 120V saw (1800W) will typically be more powerful than a 10A 120V saw (1200W).
  • Cordless Tool Motors: The motor itself draws amps from the battery. A more powerful motor in a given voltage platform will draw more amps during heavy load. You don’t usually choose a tool solely based on motor amp draw; it’s a consequence of the motor’s design and power needs within its voltage class.
  • Cordless Tool Batteries: Battery capacity is measured in Amp-Hours (Ah). This tells you how long the battery can deliver a certain current. A 5.0Ah battery can theoretically deliver 5 amps for 1 hour, or 1 amp for 5 hours (though efficiency and discharge rates complicate this slightly). Higher Ah = longer runtime, not necessarily more instantaneous power.
• Higher potential torque: Essential for demanding applications like driving large lag bolts, drilling large holes in dense wood, or heavy-duty demolition.
• Ability to run larger, more power-hungry motors: Found in tools like large circular saws, high-torque impact wrenches, and concrete demolition hammers.
• Example: A DeWalt 20V MAX XR Brushless Circular Saw (using a 20V battery) inherently has the potential for more cutting power than a basic 12V drill, primarily due to its higher voltage platform enabling a larger motor.

Choosing Wisely: Focus on the task’s power demands, not just V or A alone.

• Need high torque, heavy cutting, or demolition power? Prioritize a higher voltage platform (e.g., 18V/20V MAX for prosumer/light pro, 36V/60V/80V for heavy pro).
• Need long runtime for extended sanding, drilling many holes, or sawing lots of material? Prioritize higher Amp-Hour (Ah) batteries within your chosen voltage platform.
• For corded tools, the amperage rating (combined with the standard 120V) is a direct indicator of its maximum power potential (Watts).

What’s the Relationship Between Voltage and Current (Amps)?

The relationship is governed by Ohm’s Law:

Current (I) = Voltage (V) / Resistance (R).

• Resistance (R) represents the opposition to current flow within the tool’s motor and circuitry. It’s largely fixed by the motor’s design.
• For a given tool (fixed resistance), increasing voltage causes a proportional increase in current draw. If you double the voltage applied to the same motor (which isn’t usually possible or safe!), the current draw would also double, resulting in four times the power (Power = V x I, so 2V x 2I = 4P).
• In practical power tool terms: Higher voltage platforms are designed with motors that have appropriate resistance to efficiently utilize that voltage. They allow more power (Watts) to be delivered without requiring excessively high (and potentially dangerous or inefficient) current flows. This is why heavy-duty tools move to higher voltages – it’s a more efficient way to deliver high power levels.

This article might be helpful to you: Power Tool Batteries Explained

Work Burst Power vs. Work Duration: Voltage or Amps?

• Work Burst Power (Peak Power, Torque): This is primarily determined by Voltage and the motor design it enables. Higher voltage allows the tool to generate greater electromagnetic force within the motor coils rapidly, translating to higher torque and faster acceleration. This is crucial for impacts, driving tough fasteners, or starting a circular saw blade in thick material.
  • Example: A Milwaukee M18 FUEL Hammer Drill/Driver (18V) excels at generating high rotational force (torque) needed to drive large screws or drill big holes quickly. Its voltage platform allows for a powerful motor design capable of significant bursts of power. An M12 FUEL version (12V), while excellent for its size, simply can’t match the peak torque output for the heaviest tasks.
• Work Duration (Runtime): This is primarily determined by Battery Capacity (Amp-Hours – Ah) and Motor Efficiency. A higher Ah battery stores more energy, allowing the tool to run longer before needing a recharge. Motor efficiency (often enhanced by brushless technology) also plays a huge role, as less energy is wasted as heat, meaning more of the battery’s stored energy is used for work.
  • Example: Sanding a large tabletop requires sustained power over a long period. Using a DeWalt 20V MAX Orbital Sander with a 5.0Ah or 8.0Ah battery will provide significantly longer runtime between battery swaps than using a 2.0Ah battery. The voltage (20V) ensures the sander has enough power, but the high Ah battery determines how long it can sustain that work.

Amp vs Volt Chart

Factor	Burst Power (Peak Torque)	Work Duration
Primary Driver	Voltage	Battery Amp-Hours (Ah)
Why?	Higher voltage creates stronger electromagnetic fields for instant torque	Ah = Fuel tank size (e.g., 5Ah = 5A for 1 hour)
Tool Examples	– Milwaukee M18 FUEL Impact Driver (18V) – Ryobi 40V HP Brushless Drill	– DeWalt 20V MAX Sander w/ 8Ah battery – Bosch 12V Screwdriver w/ 6Ah pack

Key Takeaways & Buying Guidance:

1. Power is Watts: Judge a tool’s potential by its power output (often implied by voltage class for cordless, stated in Watts or HP for some corded tools), not voltage or amps alone.
2. Voltage = Potential Muscle: Higher voltage platforms (18V/20V MAX and above) enable tools with higher peak power, torque, and the ability to handle tougher jobs. Choose voltage based on the demands of your typical tasks.
3. Amps (Current Flow) = Workload: In corded tools, higher amps (at 120V) mean more Watts and more power. In cordless tools, the motor draws amps as needed; focus on the tool’s performance specs.
4. Amp-Hours (Ah) = Stamina: For cordless tools, higher Ah batteries mean longer runtime. Invest in larger batteries (higher Ah) for tools used continuously (sanders, saws) or on big jobs.
5. Match Tool & Battery to Task: Use high-voltage tools with high-capacity batteries for heavy, sustained work. Lighter tasks can utilize lower voltage platforms or smaller batteries on your main platform. For corded tools, ensure your circuit can handle the amperage (e.g., a 15A saw needs a robust circuit).

By understanding the distinct roles of voltage and amperage (and the critical importance of Amp-Hours for cordless runtime), you can cut through the marketing jargon and confidently select power tools that deliver the right combination of muscle and endurance for your projects. Remember: Voltage provides the punch, Amp-Hours provide the staying power, and together (as Watts) they define the tool’s true capability.
