The 21700 battery has become one of the most important cylindrical lithium-ion cell formats in modern energy storage. It is widely used in power tools, electric vehicles, portable power stations, and other high-drain applications where compact size, long runtime, and stable discharge performance are essential.
If you are researching 21700 battery cell specifications, looking for the best 21700 battery, or comparing 21700 battery vs 18650, this guide covers the key technical details, practical applications, and buying considerations you need to know.
What Is a 21700 Battery?
A 21700 battery is a standardized cylindrical lithium-ion battery cell. The naming rule is simple:
- 21 = 21 mm cell diameter
- 70 = 70 mm cell length
- 0 = cylindrical format
This format is considered a next-generation upgrade from the traditional 18650 battery. By increasing the cell volume, manufacturers can store more active material inside the same cylindrical structure, which helps improve capacity, energy density, and overall pack efficiency.
21700 Battery Dimensions
One of the most searched topics around this cell format is the 21700 battery dimensions. The standard physical size is:
- Diameter: 21.0 mm
- Body length: 70.0 mm
- Total height with cap: approximately 70.5–71.0 mm
- Shape: Standard cylindrical lithium-ion cell
Compared with 18650 cells, the larger diameter of the 21700 battery allows for greater energy storage capacity and improved thermal management in high-power applications.
21700 Battery Standard Specifications
Below are the typical technical parameters of a standard 21700 lithium ion battery cell.
| Parameter | Standard Specification |
|---|---|
| Cell Type | Cylindrical lithium-ion battery |
| Diameter | 21 mm |
| Length | 70 mm |
| Nominal Voltage | 3.7V |
| Full Charge Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.5V |
| Common Capacity Range | 4000mAh – 6000mAh |
| Typical Energy | 14.8Wh – 22.2Wh |
| Internal Resistance | 8mΩ – 15mΩ |
| Standard Charge Rate | 0.5C – 1C |
| Continuous Discharge | Up to 3C |
| Peak Discharge | Up to 5C |
| Operating Temperature | -20°C to 60°C |
| Charging Temperature | 0°C to 45°C |
| Cycle Life | 500 – 1000 cycles |
| Weight | 68g – 75g |
21700 Battery Voltage Explained
The standard 21700 battery is based on a 3.7V nominal lithium-ion chemistry. Like most rechargeable lithium-ion cells, it follows a well-defined voltage range:
- Nominal voltage: 3.7V
- Fully charged voltage: 4.2V
- Safe discharge cut-off: 2.5V
This voltage profile makes the cell suitable for battery packs that require a balance of runtime, power output, and charging efficiency.
21700 Battery Capacity Options
Another common search term is 21700 battery 5000mAh. In fact, 5000mAh is one of the most popular capacities in this format because it offers a strong balance between runtime and physical size.
Common capacity ranges include:
- 4000mAh
- 4500mAh
- 5000mAh
- 5500mAh
- 6000mAh
In general, higher capacity means longer runtime, while lower-capacity versions may deliver better current output for demanding tools and devices.

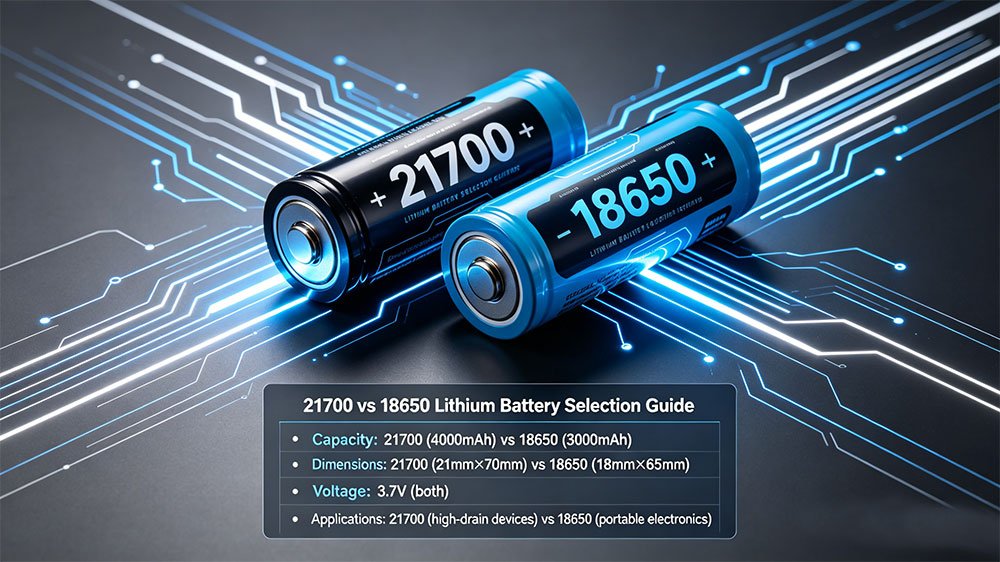

21700 Battery vs 18650 Battery
One of the biggest reasons people search for 21700 battery vs 18650 is to understand whether the larger format is worth the upgrade. In most high-performance applications, the answer is yes.
| Comparison Item | 21700 Battery | 18650 Battery |
|---|---|---|
| Diameter | 21 mm | 18 mm |
| Length | 70 mm | 65 mm |
| Typical Capacity | 4000–6000mAh | 2500–3500mAh |
| Energy Density | Higher | Lower |
| Internal Resistance | Lower | Higher |
| Thermal Performance | Better heat dissipation | More limited |
| Pack Efficiency | Better | Standard |
| Cost | Slightly higher | Lower |
| Best For | High power, long runtime, high-end applications | Compact, cost-sensitive, legacy designs |
In many battery pack designs, the 21700 format can deliver roughly 30% to 50% more capacity than 18650 cells, while also reducing the total number of cells needed in the pack.
When Should You Choose a 21700 Battery?
You should consider a 21700 battery pack when your application needs:
- longer runtime
- higher discharge capability
- improved pack efficiency
- fewer cells in the battery assembly
- better thermal performance
- more compact high-capacity energy storage
For these reasons, the 21700 format is widely used in:
- electric scooters and e-bikes
- power tools such as drills, saws, and grinders
- portable power stations
- high-power flashlights
- industrial equipment
- robotics
- energy storage systems
Best 21700 Battery: What to Look For
If you are searching for the best 21700 battery, the right choice depends on your application. There is no single “best” cell for every use case.
Key selection factors include:
- Capacity: Choose based on runtime requirements
- Continuous discharge rating: Important for high-drain devices
- Internal resistance: Lower resistance usually means better performance
- Cycle life: Critical for long-term durability
- Chemistry: NCM, NCA, or LFP depending on your priority
- Brand consistency: Important for pack reliability and safety
For power tools and electric mobility, prioritize discharge performance. For energy storage and longer service life, prioritize capacity and cycle stability.
21700 Battery Cell vs 21700 Battery Pack
A 21700 battery cell is a single cylindrical lithium-ion cell. A 21700 battery pack is a complete assembly made from multiple cells, typically including wiring, protection circuitry, and a battery management system.
- Cell = one battery unit
- Pack = multiple cells + BMS + housing + protection components
This difference is important because real-world applications often require customized voltage, capacity, and safety features that only a battery pack can provide.
7S 21700 Battery Pack Explained
A 7s 21700 battery pack means seven 21700 cells are connected in series. This configuration is commonly used in medium-voltage battery systems.
If each cell has a nominal voltage of 3.7V:
- 7S nominal voltage = 25.9V
- 7S full charge voltage = 29.4V
7S battery packs are often used in electric scooters, custom power systems, robotics, and industrial equipment.
21700 Battery Safety and Charging Guidelines
Using a 21700 lithium ion battery safely is essential for performance and lifespan. Follow these basic guidelines:
Charging
- Use a dedicated 3.6V/3.7V lithium-ion charger
- Do not exceed 4.2V per cell
- Avoid overcharging or using incompatible chargers
Discharging
- Avoid short circuits and reverse polarity
- Do not exceed the recommended discharge current
- Allow proper heat dissipation in high-power applications
Temperature
- Charging temperature: 0°C to 45°C
- Operating temperature: -20°C to 60°C
- Avoid hot environments and direct sunlight
Storage
- Store at 40%–60% state of charge
- Keep in a cool, dry place
- Recharge every 3–6 months during long-term storage
For battery packs, a proper BMS (Battery Management System) is strongly recommended to reduce the risks of overcharge, over-discharge, and short circuit.
Conclusion
The 21700 battery is now one of the most widely used cylindrical lithium-ion formats because it combines higher capacity, improved energy density, and better performance than traditional 18650 cells. Whether you are building a battery pack, selecting a replacement cell, or comparing energy storage options, the 21700 format offers a strong balance of size, power, and reliability.
If your project requires long runtime, high discharge capability, and compact pack design, the 21700 battery is often the right choice.
