Makita dab radio software upgrade guide

This Makita dab radio software upgrade from Makita Tool GmbH.

Makita’s BMR105 / DMR105 site radio has a new software update available. The update is used to improve the software and troubleshoot, for example, the transmitter run.

In this guide, you will find all the information you need to install the new software.

System requirements

Windows 7 operating system with 32-bit
warning: 64-bit operating systems are not supported.

To find out if you meet the system requirements:

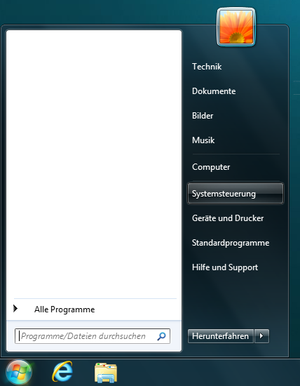

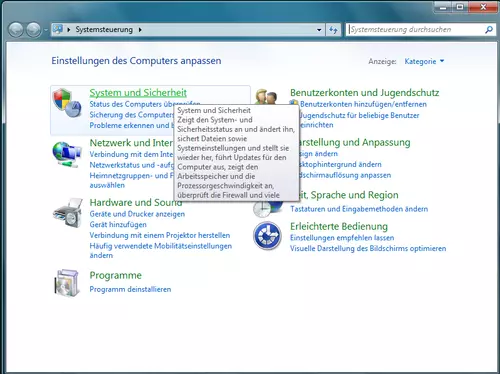

1. Open the Windows Control Panel.

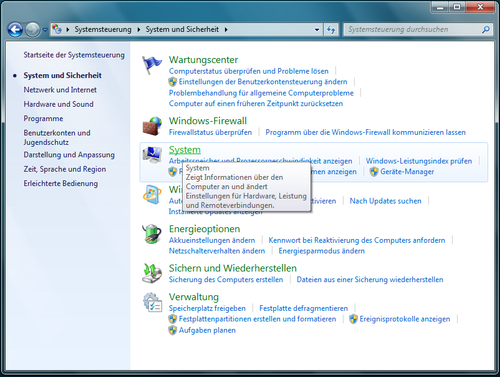

2. Click on “System and Security”.

3. Click on “System”.

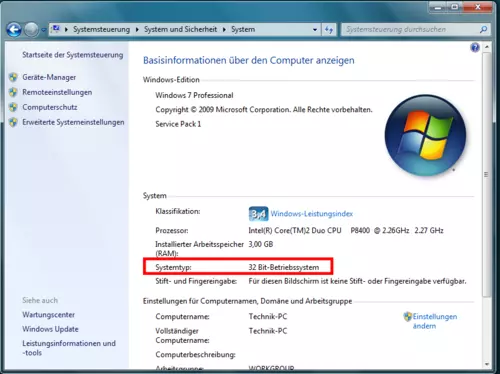

4. Under System Type, see if you are using a 32-bit or 64-bit. If you are using a 64-bit version, you will need another computer for the update.

Instructions Software Update

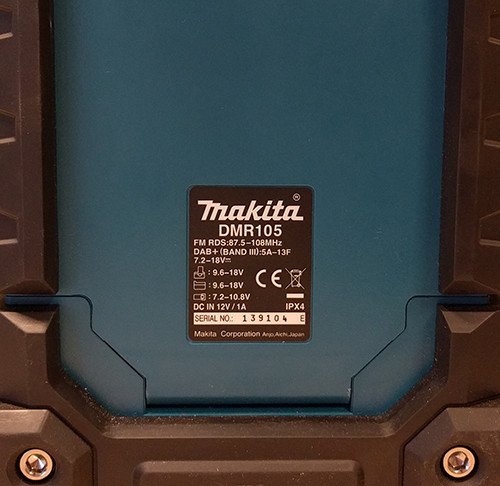

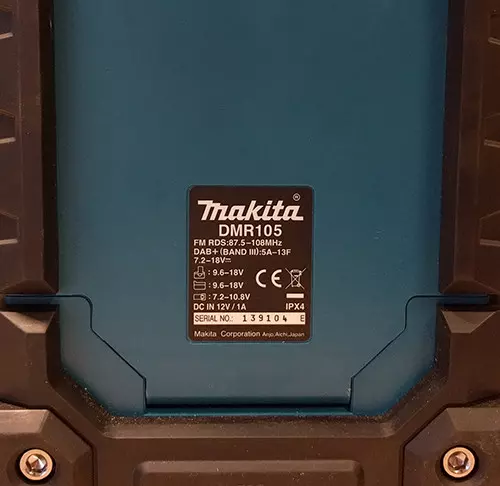

The update is for BMR105 and DMR105 models only. Please check the model number, which is shown on the back of the device:

Once you have verified that you have a compatible operating system, follow this step-by-step guide:

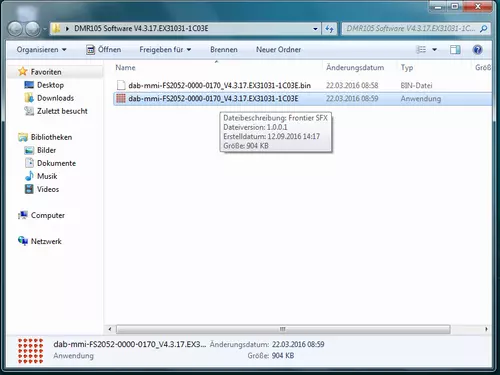

1. Download here Download the installation file and save it on your computer.

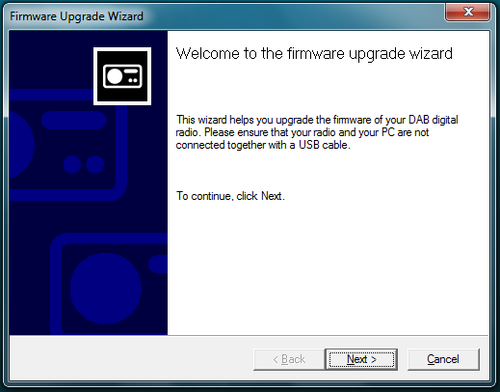

2. Open the installation file, press “Next” to go to the next step.

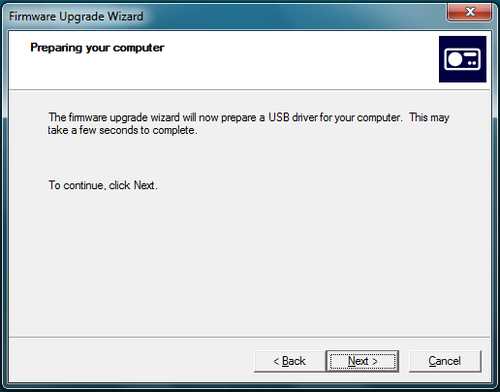

3. The installation will now install the required drivers. Please confirm the installation of these drivers and click on “Next” again.

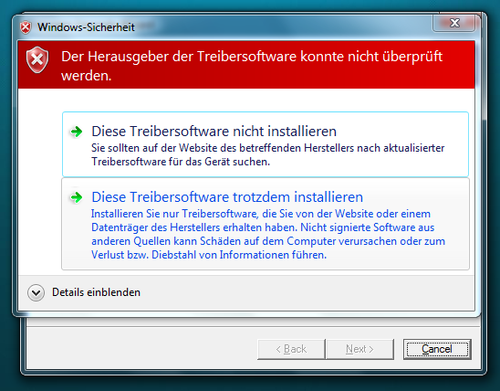

4. Windows then requires the driver installation permission. Click on “Install this driver software anyway”.

5. Your computer is now ready to install the update. You can now turn on the radio.

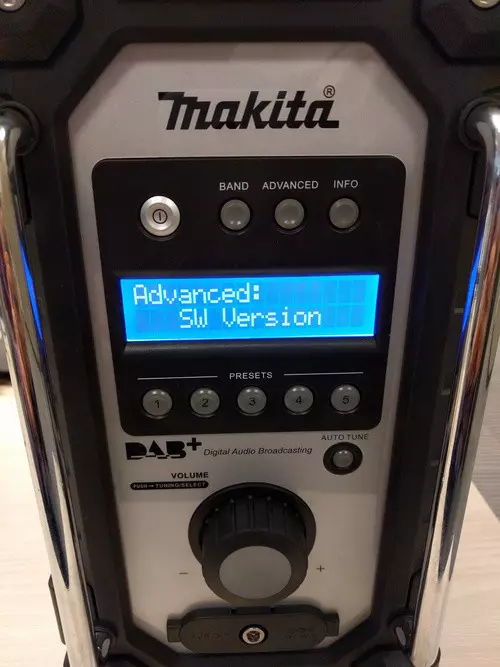

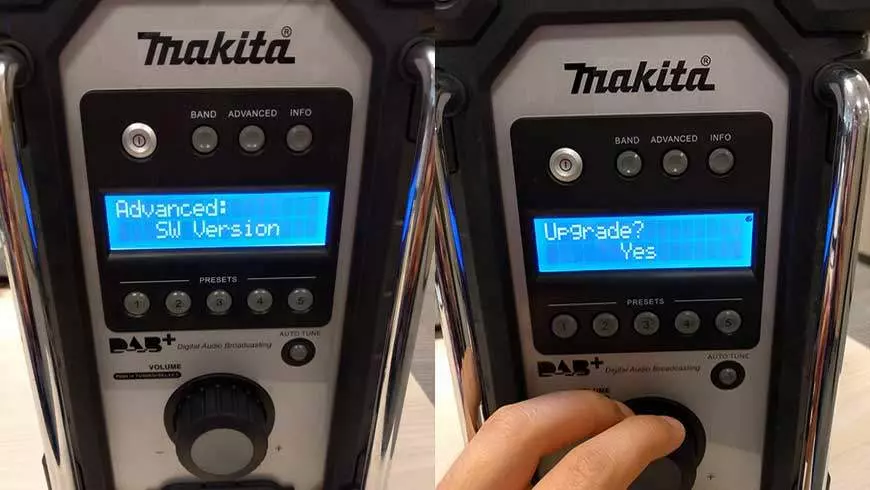

6. Then press “Advanced” and check the current software version by turning the volume control to the left and confirming the entry under “SW Version” with the press of a button.

previous version: V4.3.17-1C02E

new version: V4.3.17-1C03E

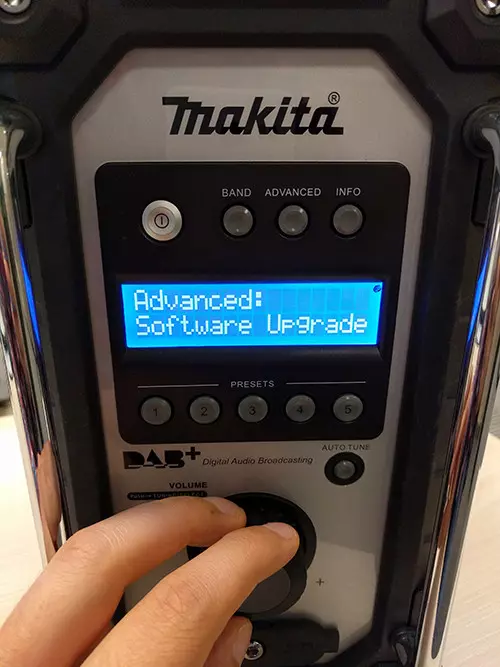

7. If your device has version V4.3.17-1C02E installed, you can follow the steps and install the update. Press “Advanced” again and turn the volume control 2 times to the left and confirm the input at “Software Upgrade”.

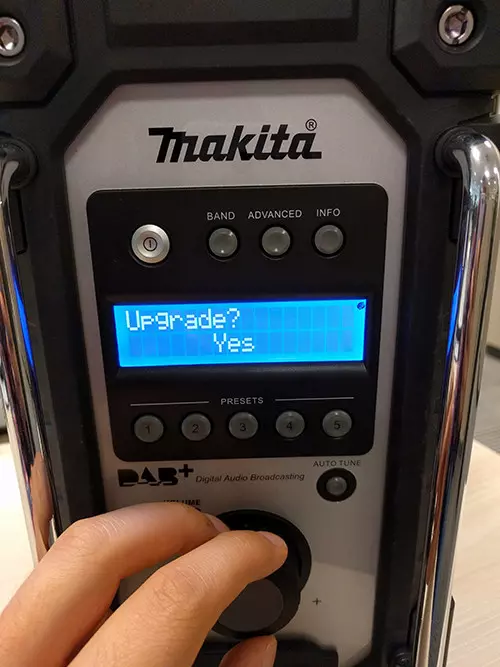

8. Confirm the installation with “Yes”.

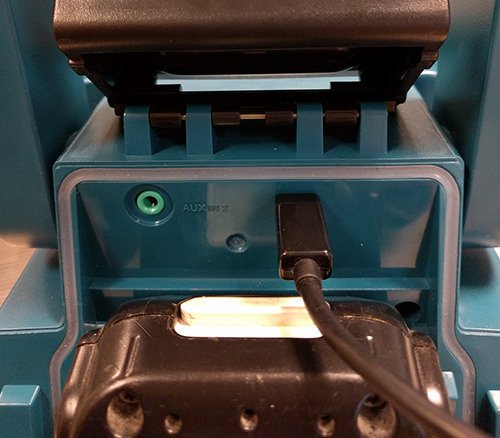

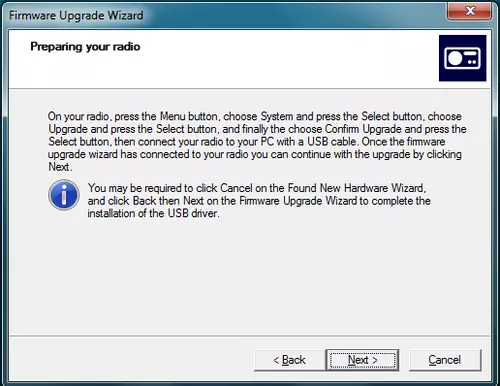

9. Now you can connect the radio to the computer via a USB cable.

10. Your computer should now recognize the radio, click “Next” to install the update.

11. Caution: Do not turn off the computer during installation or remove the USB connection.

12. The update has now been successfully completed. Finally click on “Finish” and finish the application. You can now use the radio as usual.

From https://www.makita.de/
